Rubber Injection Molding Machine - Indirect Clamping
JD-RL series
BACK
FEATURES
- Machine for natural, synthetic, oil resistant, heat resistant and reclaimed rubber.
- Low bed structure with lower working platen high.
- PLC and HMI functional control as standard specification.
- Direct and indirect clamping structure.
- Specialized nozzle design to prevent material overflow.
- Specialized feeding device.

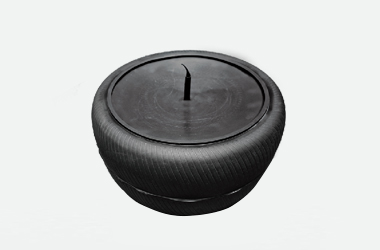

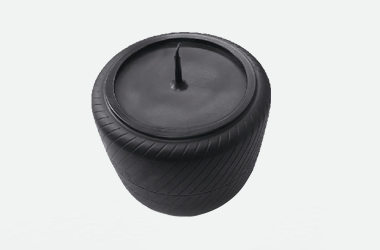

APPLICATIONS
SPECIFICATION
| MODEL | JD-RL260T | JD-RL400T | JD-RL580T | JD-RL700T | JD-RL800T | JD-RL1200T | JD-RL1500T | |
|---|---|---|---|---|---|---|---|---|
| Shot Volume | c.c. | 1000 / 1500 / 2000 | 2500 / 3000 / 4000 | 3000 / 5000 / 7000 | 5000 / 7000 / 10000 | 7000 / 10000 | 10000 / 15000 / 18000 | 15000 / 20000 / 25000 |
| Injection Pressure | kgf / cm² | 1600 | 1600 | 1600 | 1600 / 1600 / 1200 | 1600 / 1200 | 1200 / 1200 / 1100 | 1100 / 1100 / 1200 |
| Injection Cylinder Pressure | kg / cm² | 140 / 150 / 150 | 150 / 140 / 170 | 140 / 150 / 150 | 150 | 150 | 150 / 150 / 150 | 150 |
| Injection rate | cc / sec | 100 | 160 / 150 / 180 | 150 / 220 / 220 | 220 / 220 / 380 | 220 / 380 | 380 / 430 / 430 | 430 |
| Screw Diameter | mm | 45 | 50 | 50 | 60 | 65 | 65 | 65 |
| Strip Dimension (T x W) | mm | 10 x 60 | 10 x 60 | 10 x 60 | 10 x 60 | 10 x 60 | 10 x 100 | 10 x 100 |
| Clamping Force | Ton | 260 | 400 | 580 | 700 | 800 | 1200 | 1500 |
| Plate Size | mm | 520 x 580 | 600 x 650 | 700 x 720 | 750 x 900 | 1000 x 1000 | 1200 x 1200 | 1500 x 1500 |
| Piston Diameter | mm | 400 | 495 | 600 | 660 | 700 | 900 | 955 |
| Closing Stroke | mm | 560 | 650 | 760 | 800 | 1000 | 1000 | 1000 |
| Clamping Stroke | mm | 60 | 100 | 100 | 100 | 100 | 100 | 100 |
| Space Between Tie Bar | mm | 645 x 275 | 680 x 280 | 805 x 385 | 910 x 510 | 1100 x 630 | 1265 x 675 | 1600 x 1000 |
| Daylight Max | mm | 650 | 800 | 900 | 1100 | 1500 | 1500 | 1800 |
| Oil Hydraulic System | HP | 20 | 25 / 25 / 30 | 30 / 30 / 40 | 50 | 50 | 50 / 75 / 75 | 75 |
| Hot Oil Cycling Motor | kw | 0.5 x 2 | 0.5 x 2 | 0.5 x 2 | 0.5 x 3 | 0.5 x 3 | 0.5 x 3 | 0.5 x 3 |
| Platen Heated | kw | 11.6 | 15 | 19.6 | 25.8 | Steam / coal oil | Steam / coal oil | Steam / coal oil |
| System Pressure | kg / cm² | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
| Oil Tank Capacity | liters | 430 | 525 | 560 | 680 | 710 | 1130 | 1130 |
| Machine Dimensions | mm | 1635 x 2390 x 3630 | 2085 x 3150 x 4530 | 2085 x 3230 x 5250 | 2385 x 3450 x 5880 | 3950 x 3650 x 6850 | 4350 x 4170 x 7400 | 5050 x 4470 x 8000 |
| Machine Weight (Approx) | kg | 6400 | 8400 | 11000 | 15000 | 22000 | 33500 | 47000 |
|
*Dimensions are as standard, subject to change by options or upon custom-made；actual specifications are based on the finished products. *表內為標配尺寸，會因選配或客製化而有所差異，請以實際為準 |
||||||||
MOLD INSTALLATION & HEATING PLATE DIMENSION
| MODEL | JD-RL260T | JD-RL400T | JD-RL580T | JD-RL700T | JD-RL800T | JD-RL1200T | JD-RL1500T | |
|---|---|---|---|---|---|---|---|---|
| STROKE / DIMENSION | 560 | 650 | 760 | 800 | 1000 | 1000 | 1000 | |
| A (mm) | 520 | 600 | 700 | 750 | 1000 | 1200 | 1500 | |
| B (mm) | 580 | 650 | 720 | 900 | 1000 | 1200 | 1500 | |
| C (mm) | 910 | 970 | 1135 | 1260 | 1470 | 1745 | 2100 | |
| D (mm) | 200 | 200 | 300 | 400 | - | - | - | |
| E (mm) | 300 | 400 | 500 | 600 | - | - | - | |
| F (mm) | 135 | 165 | 180 | 250 | - | - | - | |
| G (mm) | - | - | - | - | 550 | 540 | 540 | |
| H (mm) | 18 | 18 | 18 | 18 | 28 | 28 | 28 | |
| I (mm) | 25 | 25 | 25 | 25 | 39 | 39 | 39 | |
| J (mm) | 10 | 10 | 10 | 10 | 20 | 20 | 20 | |
| K (mm) | 12 | 12 | 12 | 12 | 17 | 17 | 17 | |
| L (mm) | 645 | 680 | 805 | 910 | 1100 | 1265 | 1600 | |
| M (mm) | 275 | 280 | 385 | 510 | 630 | 675 | 1000 | |
| N (mm) | 100 | 120 | 150 | 200 | 200 | 240 | 240 | |
| O (mm) | 95 | 95 | 96 | 100 | 110 | 110 | 110 | |
| P (mm) | 580 | 640 | 750 | 810 | - | - | - | |
